    Kort om produktet

    Navilock NL-8004U USB 2.0 Multi GNSS Receiver, u-blox 8, 4,5m cable length, IP7x, blackThe USB 2.0 multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity.Læs mere om produktet
    1602.-1282.-
    Ekskl. moms
    Gratis levering
    Afhængig af område og kapacitet. Se alle leveringsmulighederne i check-out
    Kan købes online
    Ikke på lager i butik
    Dette produkt er blevet bedømt til 2.33 ud af 5 stjerner.2.33

    Vores e-handelsplatform er dedikeret til at tilbyde et mangfoldigt og omfattende udvalg af produkter og mærker, der imødekommer dine unikke præferencer og behov. Uanset om du er på udkig efter innovative gadgets, husholdningsartikler eller nicheprodukter, stræber vi efter at være din one-stop destination for alle dine shoppingønsker. Med en bred vifte af muligheder at vælge imellem sigter vi mod at give dig en problemfri og bekvem online shoppingoplevelse. Vores engagement i kvalitet, kundetilfredshed og brugervenlige funktioner gør os til en pålidelig og troværdig destination for alle dine shoppingbehov. Gå på opdagelse på vores virtuelle markedsplads, og opdag en stadig voksende samling af topbedømte mærker og efterspurgte produkter, der gør din online shoppingrejse til en dejlig og bekvem oplevelse.

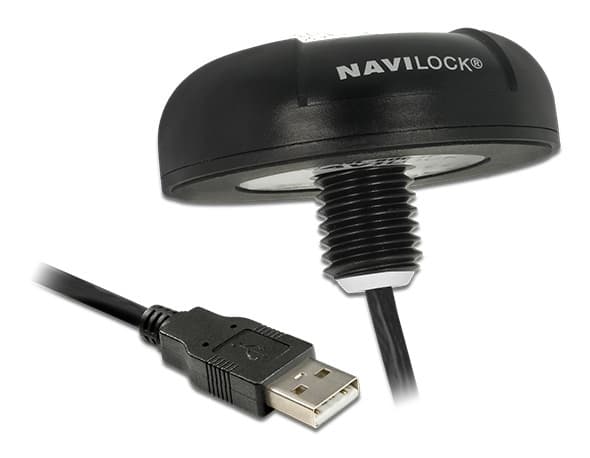

    Navilock NL-8004U USB 2.0 Multi GNSS Receiver, u-blox 8, 4,5m cable length, IP7x, black

    The USB 2.0 multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation. The NL-8004U GNSS receiver can be installed onto different vehicle roofs (car, truck, bus etc.) by using the included installation material. Thus it can perfectly fit into the vehicle concept, due to its design.

    Specification
    • Connector: USB 2.0 Type-A male
    • Chipset: u-blox 8 UBX-M8030-KT
    • Frequency:
    GPS: L1, 1575.4200 MHz
    GLONASS: L1, 1602 (k x 0,5625) MHz
    BEIDOU COMPASS: B1, 1561.0980 MHz
    GALILEO E1, 1575.4200 MHz
    QZSS L1, 1575.4200 MHz
    • Accepts the signals of up to 72 satellites at the same time
    • Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
    • Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
    • Auto Baud Rate up to 115200 bps
    • Update rate:
    single GNSS: 18 Hz (e.g. GPS solo)
    multi GNSS: 10 Hz (e.g. GPS+GLONASS)
    • Sensibility max. -167 dBm
    • IPX7 protection class
    • LED-indicator for GPS status
    • Operating temperature: -20 °C ~ 60 °C
    • Power supply: 5 V DC
    • Current consumption: max. 45 mA
    • Cold start in ca. 26 seconds
    • Hot start in ca. 1 second
    • Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS
    • Cable length: ca. 4.5 m
    • Dimensions (Ø x H without screw thread): ca. 62 mm x 21 mm

    Microsoft Sensor and Location Platform (Website)
    • Profit from Windows applications (e.g. weather, maps, etc)
    • Supporting the GNSS location platform API (32 bit)

    System requirements
    • Windows Vista/7/8/8.1/10, Linux Kernel 2.6
    • PC or laptop with a free USB Type-A port
    • For devices with OTG function and optional OTG adapter: Windows 10

    Package content
    • USB 2.0 receiver
    • Mounting material: stainless steel nut and washer
    • Navilock support CD incl. driver and user manual
