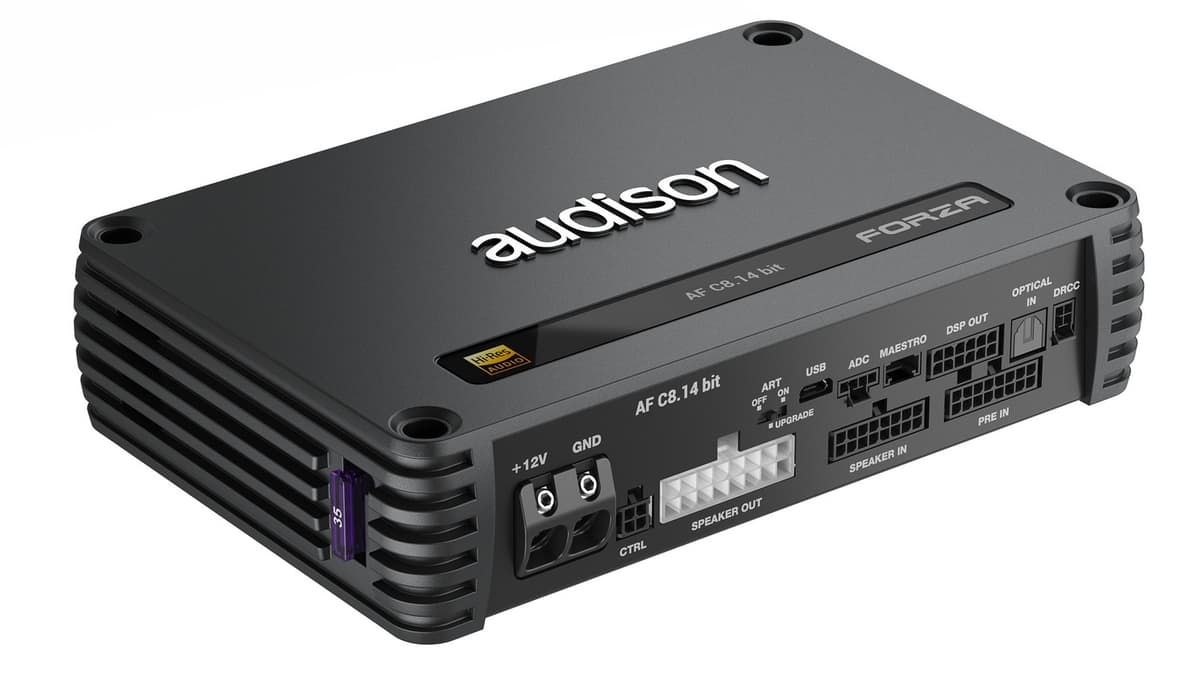

Audison Forza 8 kanals forstærker med sound processor - 8x140w
1009343
1009343
TV, Lyd & Smart Home, Højtalere & Hi-fi, Bilstereo
Audison
7499
DKK
8018823136747
Kort om produktet
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING More Power More Information More Control More Inputs More Speed More Tools More Capabilities More Guidance More Flexibility all in one state-of-the-art platform!Læs mere om produktetKort om produktet
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING More Power More Information More Control More Inputs More Speed More Tools More Capabilities More Guidance More Flexibility all in one state-of-the-art platform!Læs mere om produktet7499.-5999.-
Ekskl. moms
Ordre, retur og reklamationer håndteres af sælger - læs om denne sælger:
DC Scandinavia er et firma der har importen af mange forskellige top brands samt en del egen udvikling. I vores webshop, på www.au2tek.dk, finder du alt i tilbehør til din mobiltelefon fra Scosche og Naztech, de 2 største amerikanske brands af mobiltilbehør, og et kæmpe udvalg af bilstereo fra hhv. Hertz Audio og Audison Audio. Vi har alle de meste solgte produkter på lager og kan tilbyde levering inden for 1-2 hverdage. Når du handler på www.au2tek.dk, handler du dansk. Det betyder selvfølgelig at alle produkter, der sælges, er med 2 års garanti. Når du handler hos os vil din ordre blive leveret til en GLS pakkeshop i nærheden af hvor du bor. Har du spørgsmål om vores produkter, er du velkommen til at kontakte vores medarbejdere på dcs@dcscandinavia.dk. Vi forsøger altid at få et svar frem til dig omgående, senest i løbet af 1-2 hverdage.
AUDISON FORZA, THE NEXT LEVEL OF OEM INTEGRATION AND TUNING
- More Power
- More Information
- More Control
- More Inputs
- More Speed
- More Tools
- More Capabilities
- More Guidance
- More Flexibility
all in one state-of-the-art platform!
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF C8.14 bit boasts eight high-fidelity amplified channels 65W x 8 @4Ω*, 100W x 8 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 4 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
NEXT-GENERATION TUNING CAPABILITIES FOR MAXIMUM CONTROL
Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph, and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The six processed preamp outputs are in addition to the eight amplified channels, allowing Forza’s DSP section to manage a larger system easily.
ADVANCED OEM INTEGRATION CAPABILITIES
Forza’s eight analog inputs, plus an optical Toslink digital input, support total connectivity even with the most complex OEM systems. If more analog inputs are required, the optional F4IN expansion card adds four additional analog input channels! If a Coaxial SPDIF or a second Toslink SPDIF input is needed, the optional F2O expansion card can be used. Audison’s classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system., The electrical signal analysis ensures proper integration and correction for each input and output channel. The built-in universal speaker simulation technology (USS) yields maximum compatibility with any OEM Source, without muting or instability.
AF C8.14 bit includes a set of four high-quality cables supplied with a protective printed strip placed upstream of the Molex connectors to increase the resistance to torsion:
- One 8 stereo RCAs interconnection for after-market sources with PRE-OUT outputs
- One featuring 8 pairs of labeled cables for the connection to high-level output OEM sources
- One includes eight pairs of labeled cables to connect the speakers to the amplifier
- One Control interconnection to control memory selection and remote power-on.
Technical Specification
POWER SUPPLY | |
Nominal power supply voltage / fuse: | 11 ÷ 15 VDC / 1 x 35A |
Pulse operating voltage: | 6.5 ÷ 17.5 VDC |
Idling current: | 1.3 A |
Standby current draw: | 1.5 mA |
Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): | 34 A |
Remote IN: | 4 ÷15 VDC (1 mA) |
Remote OUT: | 6.5 ÷15 VDC (150 mA) |
ART – Automatic Remote Turn on/off from Speaker-In | 1.5 VDC |
Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: | 81% |
AMPLIFIER STAGE | |
Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: | 0.05% |
Damping factor @ 1 kHz , 4Ω, 2 VRMS: | 85 |
Bandwidth @ -3 dB: | 10 Hz ÷ 42 kHz |
S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: | 98.5 dBA |
S/N ratio (A weighted @ Rated Power) Optical Input: | 105 dBA |
Minimum load impedance: | 8Ch: 2Ω |
4Ch – (Bridge 1/2: 3/4: 5/6: 7/8): 4Ω | |
Output Continuous Power (RMS) @14.4 VDC, 1% THD: | |
• 8 Ch @ 4Ω: | 65 W x 8 |
• 8 Ch @ 2Ω: | 100 W x 8 |
• 4Ch (Bridge 1/2: 3/4: 5/6: 7/8) @ 4Ω: | 200 W x 4 |
CEA SPECIFICATIONS | |
Output power @ 4Ω, 1% THD+N, 14.4 V: | 55 W x 8 |
SN ratio (ref. 1 W output): | 80 dB |
INPUTS / OUTPUTS | |
Pre-In (8 Ch): | 0.6 ÷ 6 VRMS (15 kΩ Imp.) |
Speaker-In (8 Ch + additional 4 Ch with optional F4IN card): | 2.2 ÷ 22 VRMS (5 Ω Imp.) |
Digital IN: | 1 x Optical S/PDIF: Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card |
DSP Preout (6 Ch): | 5V RMS |
DIGITAL SIGNAL PROCESSOR | |
Audio DSP and converters: | Analog Devices ADAU1467 automotive qualified audio processor. Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance |
Filter type: | Full / High-Pass / Low-Pass / Band-Pass |
Filter mode and slope: | Linkwitz-Riley @ 12/24/36/48 dB/Oct. |
Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct. | |
Bessel @ 6/12/18/24/30/36/42/48 dB/Oct. | |
Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct. | |
QLP @ 6 dB/Oct. | |
Crossover frequency: | 20 Hz ÷ 20 kHz |
Phase control: | 0° / 180°, All-Pass filters |
Analog Input Equalizer (20 Hz ÷ 20 kHz): | 12 Biquad + Delay |
Output Equalizer: | Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz |
Input and Output Real-Time Audio Monitor: | RTA |
Time Alignment Distance: | 0 ÷ 510 cm / 0 ÷ 200.8 inches |
Time Alignment Delay: | 0 ÷ 15 ms |
CONTROL CONNECTIONS | |
Audison DRCC port: | Input for DRCC remote control (Optional) |
Audison ADC port: | Manage other Audison devices that support this standard |
Control 1 wire: | Customizable functions (+ 12 V activated) |
Control 2 wire: | Customizable functions (+ 12 V activated) |
GENERAL REQUIREMENTS | |
PC connections: | Micro USB 1.1 / 2.0 / 3.0 Compatible |
Software/ PC requirements: | Windows 10, Windows 11 (min. res. 1024 x 768 |
Ambient operating temperature range: | 0 °C to 55 °C (32 °F to 131 °F) |
SIZE / WEIGHT | |
Max size W x H x D (mm/inch): | 200 x 47 x 134 / 7.87 x 1.85 x 5.27 |
Weight (kg/lb): | 1.49 / 3.28 |
