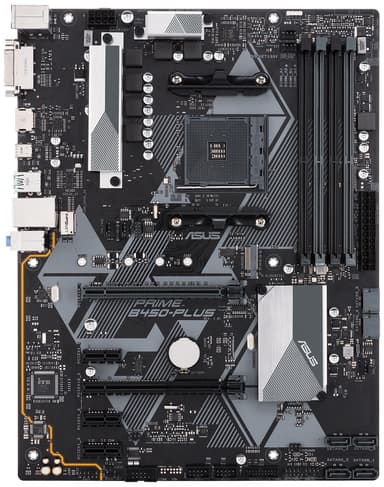

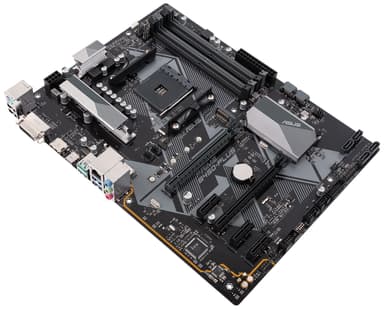

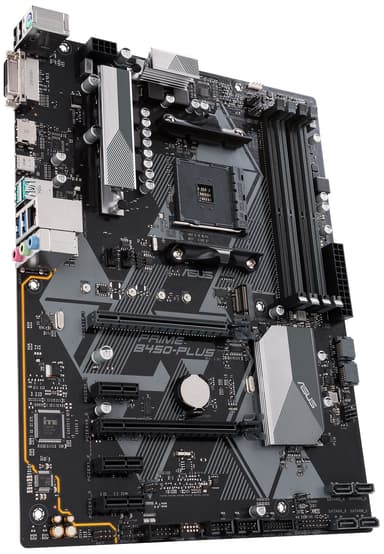

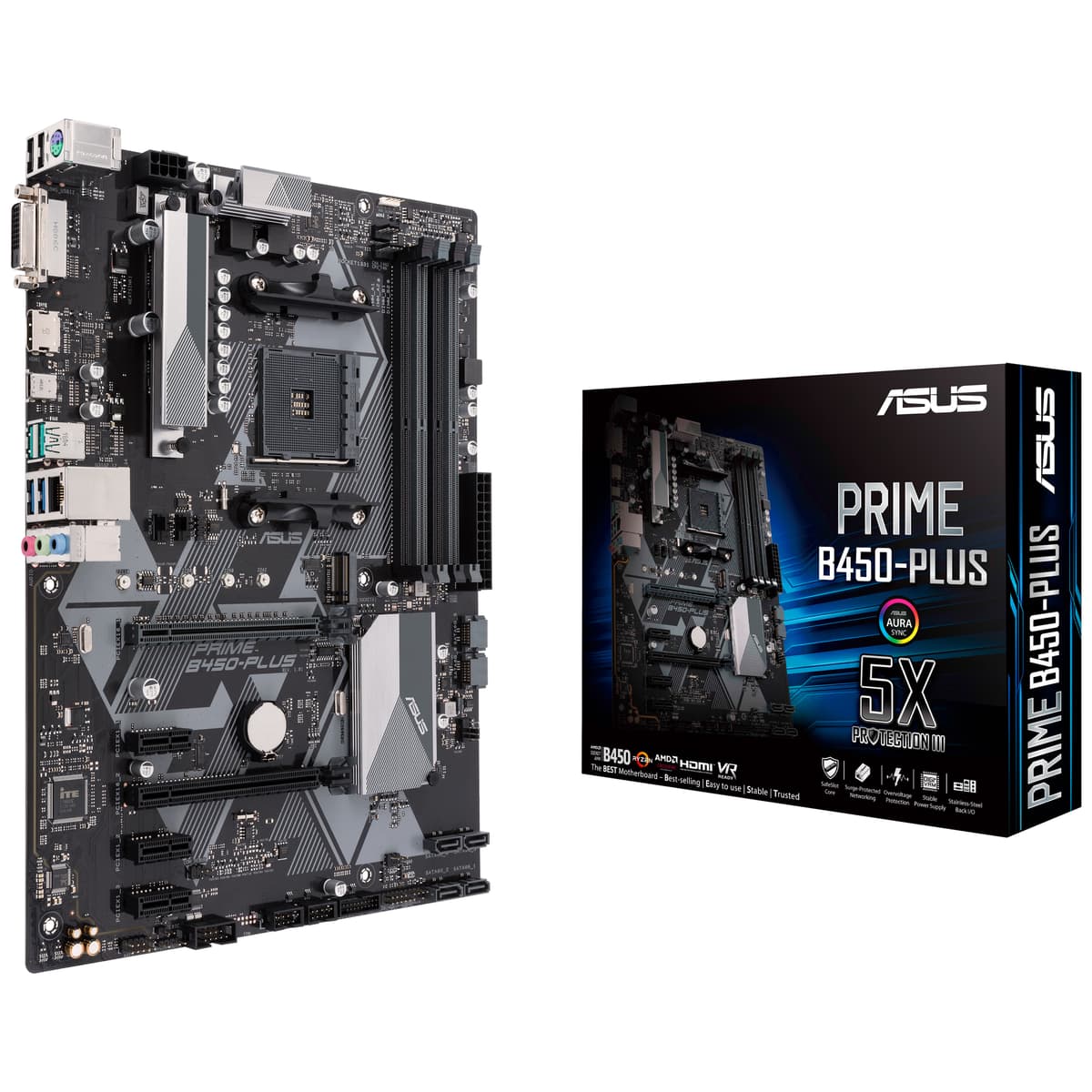

Asus Prime B450-Plus motherboard
Varenummer: 12384
Kort om produktet
Build a classy workstation or gaming PC with Asus Prime B450-Plus motherboard. The ATX-format motherboard has AM4 socket for 1st and 2nd gen. AMD Ryzen processors, dual AMD Crossfire GPU setup and surround sound output.
Læs mere om produktetSpecifikationer
- ATX form, AMD AM4 socket
- Dual AMD GPU support
- Easy fan control, 7.1 audio
Leverandørens EcoVadis-score
Læs mere om EcoVadisMere om produktet
Build a classy workstation or gaming PC with Asus Prime B450-Plus motherboard. The ATX-format motherboard has AM4 socket for AMD Ryzen processors and supports dual AMD Crossfire GPU setup. Enjoy lag-free network traffic and crisp audio with 7.1 surround sound output. The motherboard lets you install up to 64 GB fast DDR4 RAM and super-responsive M2.SSD storage. Connect a broad range of peripherals on multiple video outputs or fast USB 3.1 and 3.0 devices.
Socket
The motherboard has AM4 socket with support for 1st and 2nd generation AMD Ryzen processors (with and without integrated Vega graphics).
Dual AMD GPU setup
Two PCIe x16 slots let you install dual AMD graphics in CrossFire configuration, enhancing your PC s gaming potential even further.
Audio
The board uses Realtek ALC887 audio codec to deliver crisp 7.1 surround sound with minimized noise.
Cooling
Onboard thermal sensors and advanced fan control ensure the board provides optimized cooling for all hot components while keeping fan noise to minimum.
Features:
- 1x PCI Express x16 3.0 bus with SafeSlot reinforcement
- 1x PCI Express x16 2.0 bus
- 3x PCI Express x1 bus
- 4 DIMM memory slots support dual-channel DDR4 modules up to 3466 MHz and 64 GB total capacity
- 4 SATA connectors with 6 Gb/s throughput
- 1x M2.SSD NVMe key slots support M2.2280, M2.22110, M2.2260 and M2.2242 SSD cards with up to 32 Gb/s throughput
- Illuminated LED trace path surrounds the audio components
Input/output connectors:
- 1x combined PS/2 port for mouse/keyboard
- HDMI and DVI video output (requires integrated GPU on chip)
- Gigabit LAN port
- 2x full-size USB 3.1 ports (up to 10 Gb/s)
- 1x reversible USB-C 3.0 port (up to 5 Gb/s)
- 2x full-size USB 3.0 ports (up to 5 Gb/s)
- 2x USB 2.0 ports
- 3x 3.5 mm mini-jacks
Socket
The motherboard has AM4 socket with support for 1st and 2nd generation AMD Ryzen processors (with and without integrated Vega graphics).
Dual AMD GPU setup
Two PCIe x16 slots let you install dual AMD graphics in CrossFire configuration, enhancing your PC s gaming potential even further.
Audio
The board uses Realtek ALC887 audio codec to deliver crisp 7.1 surround sound with minimized noise.
Cooling
Onboard thermal sensors and advanced fan control ensure the board provides optimized cooling for all hot components while keeping fan noise to minimum.
Features:
- 1x PCI Express x16 3.0 bus with SafeSlot reinforcement
- 1x PCI Express x16 2.0 bus
- 3x PCI Express x1 bus
- 4 DIMM memory slots support dual-channel DDR4 modules up to 3466 MHz and 64 GB total capacity
- 4 SATA connectors with 6 Gb/s throughput
- 1x M2.SSD NVMe key slots support M2.2280, M2.22110, M2.2260 and M2.2242 SSD cards with up to 32 Gb/s throughput
- Illuminated LED trace path surrounds the audio components
Input/output connectors:
- 1x combined PS/2 port for mouse/keyboard
- HDMI and DVI video output (requires integrated GPU on chip)
- Gigabit LAN port
- 2x full-size USB 3.1 ports (up to 10 Gb/s)
- 1x reversible USB-C 3.0 port (up to 5 Gb/s)
- 2x full-size USB 3.0 ports (up to 5 Gb/s)
- 2x USB 2.0 ports
- 3x 3.5 mm mini-jacks
Specifikationer
Mål og vægt
Bredde (cm) 30.5 Dybde (cm) 23.7 Højde (inkl. emballage) 58,0 mm Bredde (inkl. emballage) 26,8 cm Dybde (inkl. emballage) 33,2 cm Vægt (inkl. emballage) 1,064 kg Nøglespecifikation
Formfaktor ATX Modelnavn Asus Prime B450-Plus Chipset AMD B450 CPU-sokkel AMD AM4 Hukommelsestype DDR4 RAM slot (total) 4 Understøttelse RAM (MHz) 3466 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666 (OC), 2400 (OC), and 2133 MHz; Dual-Channel Memory Architecture RAM maks. opgradering (GB) 64 CrossFire support Ja SLI-Support Nej Modelbeskrivelse
Produkttype Motherboard / bundkort (AMD) Formfaktor ATX Modelnavn Asus Prime B450-Plus EAN-kode 4718017075671 Producentens varenummer 90MB0YN0-M0EAY0 Processor
Motherboard chipset-familie AMD Chipset AMD B450 CPU-sokkel AMD AM4 Kompatible processorer AMD Ryzen Hukommelse/RAM
Hukommelsestype DDR4 RAM slot (total) 4 Understøttelse RAM (MHz) 3466 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666 (OC), 2400 (OC), and 2133 MHz; Dual-Channel Memory Architecture RAM maks. opgradering (GB) 64 Grafik
CrossFire support Ja SLI-Support Nej Integreret LAN
WLAN (Wireless Local Area Network) Nej Maks. hastighed (LAN) 10/100/1000 Interne tilslutninger
USB 2.0 (intern) 2 USB 3.0 (intern) 2 SATA-tilslutninger 4 x SATA 6Gb/s M.2 slot (total) 1 Udvidelsesporte
PCI-Express 1x (total) 3 Lyd
Type lydkort Realtek ALC887 8-Channel High Definition Audio CODEC Eksterne tilslutninger
HDMI-tilslutning 1 DisplayPort 0 DVI 1 VGA 0 Ethernet-tilslutning (RJ45) 1 S/PDIF out 0 PS/2 1
Miljøparametre
Hvorfor har vi miljøparametre?
Vil gør det lettere for dig at træffe et mere bæredygtige valg, når du ønsker at købe teknologi-produkter.
| Leverandørens EcoVadis-score | Bronze |
| 3. parts miljøgodkendelse | Ingen godkendelse |
| Energimærkning | Ingen vurdering |
| Fremstillet i | Kina |
